Efficacy antifouling

We are a specialized, experienced and independent ISO/IEC 17025 accredited testing institute for efficacy testing of innovative, biocide-free and biocide-based antifouling systems for ships, offshore structures and port structures, among others. Our experienced team performs static and dynamic field tests at our test stations on the island of Norderney. Our program also includes testing on vessels.

We test the effectiveness of antifouling systems for ships, pleasure craft, harbor and offshore structures at our own removal stations on Norderney and in cooperation with partners worldwide. We test mortar and concrete materials for their stability against biogenic sulfuric acid corrosion.

Dipl.-Geogr. Bernd Daehne Director of Antifouling Research Station
Get in touch

Rapid test
of the initial settlement of barnacles in North Sea waters

This rapid test, developed by our company, was first presented in 2016 at the International Congress for Marine Corrosion and Fouling (ICMCF) in Toulon. It fulfilled a long-held wish of developers of antifouling coatings for a short-term screening test that could be performed in real-life outdoor conditions. This test, which lasts approximately one week, does not replace seasonal testing, but gives an initial idea of the product's effectiveness, thus providing valuable information on which compounds show promise; these can then be investigated in greater depth and developed further. Ideally, this test is performed in April and immediately followed by static panel testing. However, the rapid test can also be started in July.

Static panel testing in North Sea waters
in accordance with ASTM 2683-78a (testing) and ASTM D 6990-20 (evaluation)

This is the classic antifouling test using coated panels that are suspended in the seawater for an entire summer season from April to September. Dr. Brill + Partner offers this test in several panel sizes. Interim inspections are performed monthly throughout the season. The photos and fouling logs are made available by email or cloud immediately after every inspection so that the customer can closely monitor the development of fouling. Following the final inspection at the end of September, a detailed report is compiled containing results and recommendations.

Dynamic panel testing in North Sea waters
Evaluation in accordance with ASTM D 6990-20

Static panel testing does not provide an ideal picture of the efficacy of new anti-adhesion or “foul release” coatings since these are more dependent on current than others. This is why the Institute for Antifouling and Biocorrosion on the island of Norderney developed the RotoMarin®. This test bench is used for dynamic testing throughout the summer season by having the panels rotate around an axis. This method was also presented in 2016 at the ICMCF and in several specialized journals. The particular advantage of the RotoMarin® is that results obtained at flow rates of 2–12 knots can be read off each panel. This makes it possible to determine the speed threshold at which the respective coating becomes effective.

Static panel testing in subtropical or tropical seawater
in the Mediterranean, the Red Sea, off New Zealand and other locations on request

Although fouling in the North Sea is very prolific and diverse during the summer months, a number of customers also like to confirm the results in other waters. It can also happen that a field test has to be started at a time when the fouling season in the North Sea is over. For this reason, we also offer testing at our partner stations. The fouling in Wellington (New Zealand) is very similar to that in the North Sea but occurs at a different time of year. Port du Gapeau, near Toulon (Mediterranean), experiences the fouling typical of the Mediterranean with worms that secrete calcareous tubes. In contrast, the subtropical climate of Tuticorin (India) is conducive to severe fouling with barnacles.

Dynamic field test using test patches on recreational craft
Evaluation in accordance with ASTM D 6990-20

In the late test phase, the most promising coatings are tested in real-life field tests. The greatest variability with regard to the dates for application and inspections is offered by trials on Brill's own leisure boats. In spring, test patches are applied in dry dock by Brill. On both boats, an area is available amidships for a maximum of 3 test formulations as stripes. During the summer months, inwater surveys are carried out by use of an underwater camera, and after six months in autumn a final inspection is carried out when the ships are taken out of the water. Both ships sail with a level of activity typical of recreational craft. The sailing boat DIEKE reaches speeds of 2-7 knots, the motor boat MARLEEN usually travels at up to 24 knots.

Dynamic field test using test patches on commercial vessels
Evaluation in accordance with ASTM D 6990-20

In the final test phase, the most promising coatings will be tested in real-life field tests on commercial vessels. For this purpose, coastwise operating ships are favoured, as they are usually dry-docked annually and can then be coated and inspected one year later. However, the exact time interval of the routine dockings must be observed. Depending on the type of coating and the customer's wishes, Dr. Brill und Partner organises suitable ferries or authority vessels with suitable docking dates, accompanies the application of the test patches by a specialist company i.a. with regard to substrate pre-treatment. Inspections can be carried out sporadically at irregular intervals by inwater survey, a dock inspection usually is only possible after approx. 12 months in the spring of the following year.

In-water survey
Evaluation in accordance with ASTM D 6990-20

Dr. Brill + Partner also offers In-water surveys of boat and ship hulls. This involves systematically scanning the hull with an underwater camera to inspect the condition of the coating or certain parts of the hull (propeller, rudder, log). The resulting images and videos are processed and provided to the customer together with a corresponding inspection report in accordance with ASTM D 6990-20 in the case of a fouling inspection.

Cleaning test coatings
using brushes or high-pressure water jets

”Cleaning” and “grooming” (cleaning at short intervals) are approaches to tackling fouling on ships that are (again) attracting increased attention. More and more manufacturers are relying on robust, cleanable but biocide-free hard coatings that have to be cleaned at regular intervals. Dr. Brill + Partner has developed suitable test procedures that approximate real-life situations as closely as possible. The test panels are cleaned under water using rotating brushes or high-pressure water jets at the intervals recommended by the manufacturer. The panels are inspected both before and after the cleaning process.

Static panel testing in fresh water
in accordance with ASTM D3623-78a (2020) (testing) and ASTM D 6990-20 (evaluation)

Dr. Brill + Partner also offers the classic panel test for the summer season from April to September in freshwater locations. We offer these tests because there are certain promising non-toxic products that are not (yet) sufficiently effective in seawater but could by all means be an environmentally friendly alternative in fresh water, in which less fouling occurs. Another advantage of these is they are not subject to biocide regulations. Considering that 70 % of recreational vessels in Germany are berthed in fresh water, the market is considerable and we have therefore established the perfect test station at the marina in Grohn.

Static panel testing in North Sea waters under offshore-like conditions
Evaluation in accordance with ASTM D 6990-20

Attention is increasingly turning to antifouling solutions for offshore structures. Dr. Brill + Partner therefore operates a “beach station” on the exposed west side of the island of Norderney. Here, static tests can be performed in the various zones on a pile, i.e. the spray zone (supralittoral), the intertidal zone (eulittoral), and the permanently submerged zone (sublittoral).

Antifouling tests for marine energy installations
Evaluation in accordance with ASTM D 6990-20

Marine energy installations could become an important source of energy in the future. However, one critical problem is fouling, which inevitably accumulates on both static and dynamic components. At its test station on Norderney, Dr. Brill + Partner can test antifouling solutions in both situations using static panel tests for static components and dynamic tests on the RotoMarin® for rotating components.

Static testing with nets or yarns for aquaculture in seawater
Evaluation in accordance with ASTM D 6990-20

Another area in which antifouling solutions are required is mariculture, a type of aquaculture. The nets and cages used by mariculture systems quickly become fouled in the sea, thus impairing the exchange of water with the surrounding environment. This can cause excrement to accumulate inside the systems. Biocides should not be used on nets since food production is involved. Furthermore, the fish are sometimes treated with antibiotics, which in combination with antifouling biocides could cause dangerous interactions. Dr. Brill + Partner stretches the yarns or nets in appropriate frames and samples them every month in compliance with ASTM.

Extended static panel testing over the winter season
in accordance with ASTM D3623-78a (2020) (testing) ASTM D 6990-20 (evaluation)

If the results shown by individual coatings after the summer season are very good, we strongly advise continuing the test without interruption since the time factor cannot be simulated in biological tests of this kind. Although the fouling only develops slowly during the winter season from October to March, the coating continues to “age”. If ice forms, the test panels are taken out of the water and stored temporarily in aquariums. Initially, only one inspection is performed when the fouling season starts in April. Depending on the fouling and the condition of the coating, the customer can then decide which coatings should be tested every month throughout the subsequent summer season.

Measurement of barnacle adhesion
in accordance with ASTM D 5618-94

In the case of anti-adhesive or “foul release” coatings, it can happen that fouling settles on static components but does not adhere to them. This test for measuring barnacle adhesion was developed to quantify this adhesive strength and identify discrepancies between different test coatings. Once the barnacle type and size have been determined, the shear force required to push the barnacle to one side is measured.

Antifouling and fouling training

On Norderney, Dr. Brill + Partner offers training courses for 3 to 15 persons on the topics of fouling and antifouling. By arrangement, the courses comprise 1-2 days with or without a mudflat hike in the Norderney mudflats. During this time, fouling organisms and their adhesion strategies, numerous biocidal and non-biocidal antifouling methods including cleaning as well as test methods for testing the effectiveness of new antifouling systems are explained and shown. The training includes practical parts at the port, on the shore and in the laboratory as well as theoretical explanations by means of lectures. Each participant receives a certificate of attendance.

Other material tests in seawater,
e.g. tests of plastic biodegradability

Along with tests of antifouling efficacy and corrosion prevention, Dr. Brill + Partner also offers other material tests that are conducted in seawater. Manufacturers can for example have us expose plastics before performing their own durability and weathering investigations later on. One specific application relates to polymers for fishing nets, which need to be made biodegradable to prevent them littering the oceans and coasts for decades on end.

Supply of seawater or marine organisms
e.g. corophium or fish

Natural seawater is commonly required for research purposes since artificial seawater can simulate the salt content but not the biotic content or properties of its natural equivalent.

Marine organisms such as benthos or fish samples are also required. Dr. Brill supplies the requisite organisms whenever necessary and possible.

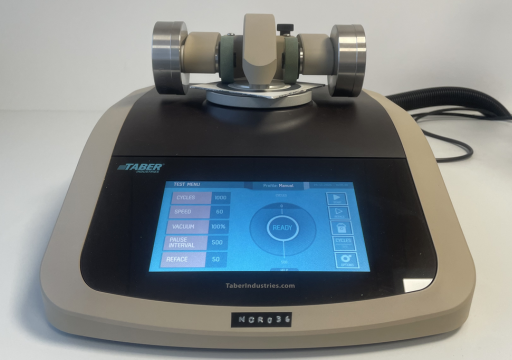

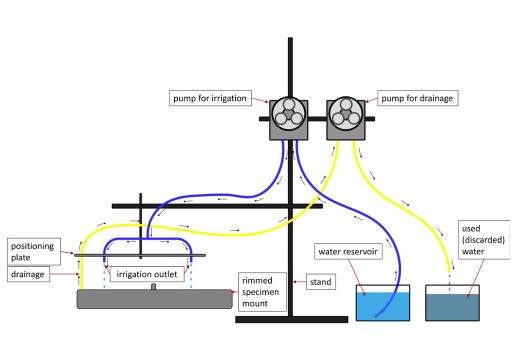

Material resistance and material testing
